This machine is made up of vertical ultrasonic bottle washing machine, hot air circulation oven, KFG series Xilin bottle liquid filling and filling machine. It can also be used on a single machine. Suitable for 1-50ml specification of Xilin bottle water needle production. It can finish ultrasonic cleaning, last flush (two times of circulating water, fresh water), three times flushing, drying, sterilizing, cooling, filling, filling and filling.

Equipment Features：

The bottle washing machine adopts mechanical hand clamping bottle, and is suitable for bottles of various specifications.

Washing bottle adopts tracking and inserting water, air washing quality is high, saving water.

Wash the crude washing water and separate the water pipe from the clean water without cross contamination.

A buffer block is added to the bottle screw of the bottle washing machine, and a protective screw is arranged to reduce the function of bottle breaking.

The bottle washing bottle adopts the integral import synchronous belt, and connects the bottle pulling block to deliver the oral liquid, which runs stably and reliably.

The oven is heated by hot air circulation, with uniform temperature and energy saving.The oven is protected from sudden power failure and runs safely.

The oven can be equipped with a circulating water cooling device, which does not lose the air volume of the room, reduces the extraordinary risk of the pressure difference of the room, and has a good cooling effect.

The oven can be equipped with the air pressure balance device to reduce the deviation of the high temperature section caused by the unbalance of the pressure difference between the room and the oven, and a series of problems, such as the increase of the temperature between the washing and drying between the filling and so on.

The filling part of the filling machine adopts horizontal plug and horizontal disc CICE, which has the characteristics of convenient observation, convenient feeding and high speed.

The filling machine can be equipped with ceramic pump, stainless steel pump and peristaltic pump.Bottle free filling, bottle free and no plug functionFilling machine can be equipped with servo filling form (Delta, MITSUBISHI, Rockwell).

The filling machine adopts horizontal synchronous belt transport mode, with high speed, and accurate bottle sorting, and convenient replacement of specifications.

The transport plane at the bottom of the bottle has a certain distance from the working table, which is conducive to the passage of a hundred level laminar wind and prevents the occurrence of turbulence pollution.

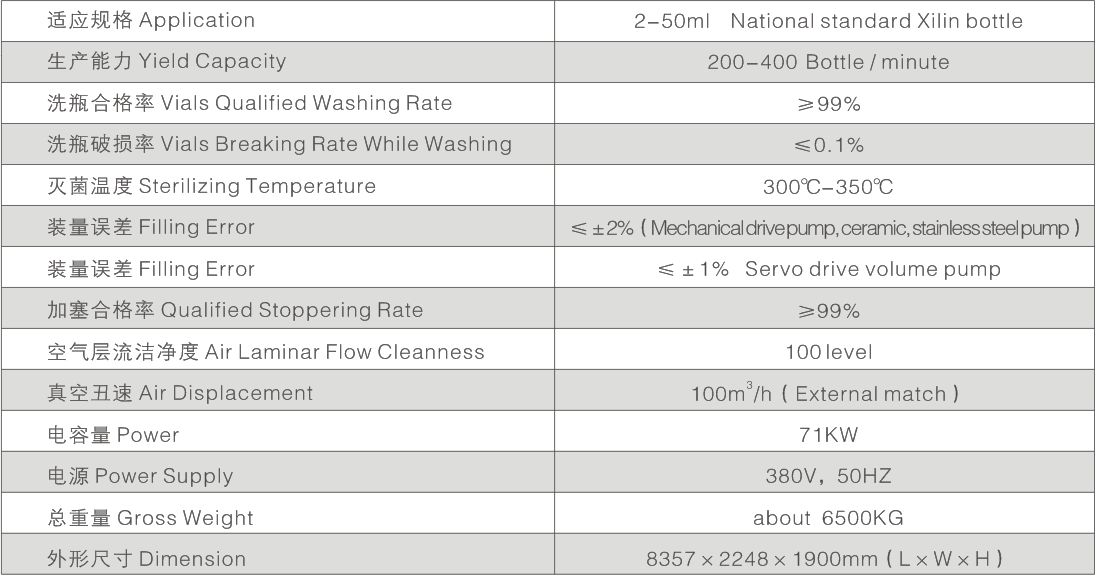

Technical Parameter：
